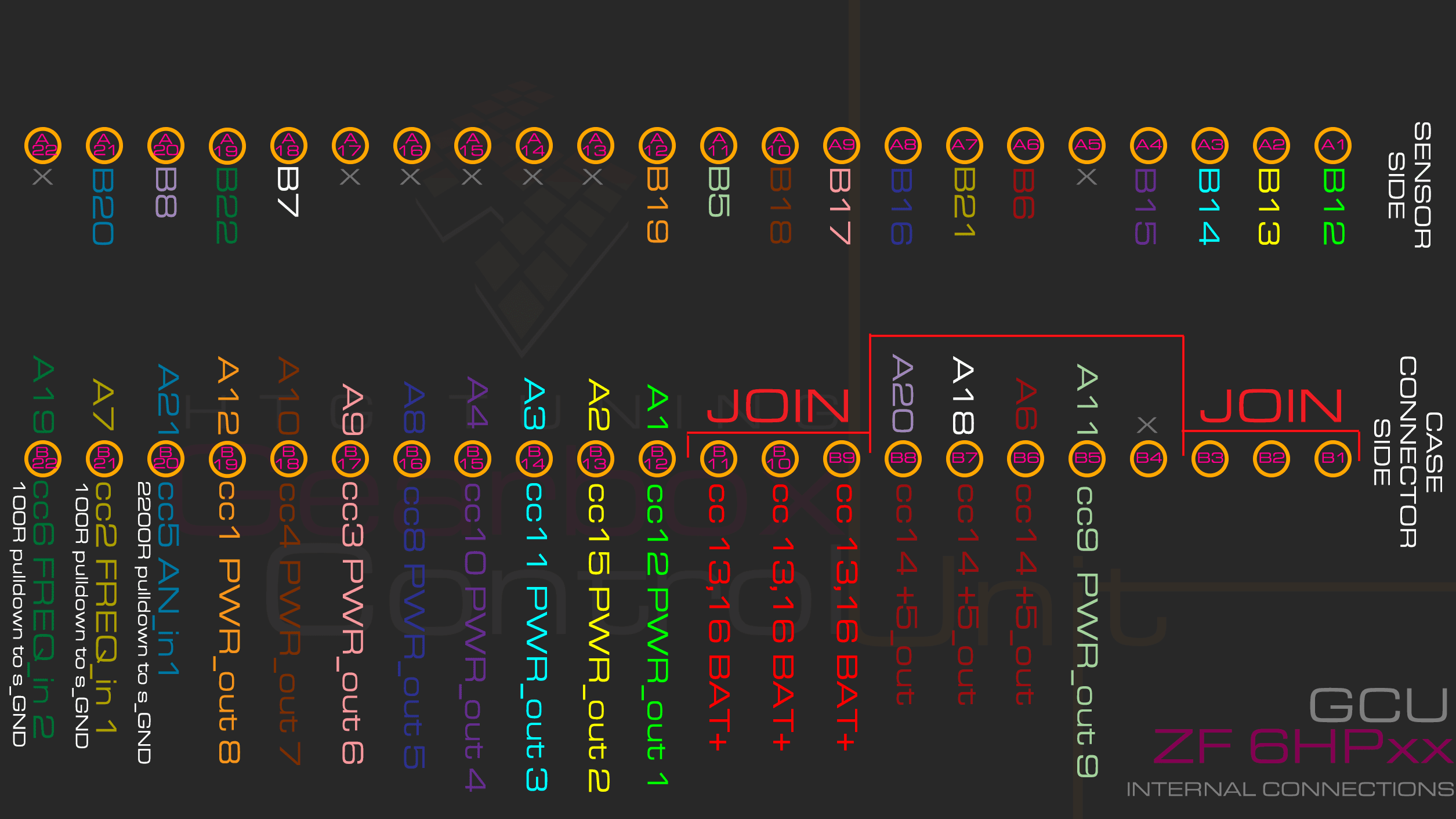

Mechatronics wiring diagram for ZF6HP gearbox
Instaling unversal standalone GCU requires certain modifications to be done to the mechatronics unit inside this tupe of ZF 6HP tranmissions.
To modify it You’ll need:
- Solderning station
- Dremel
- Torx
- Side cutters
- Wires (1mm^2 or 17AWG silicone/PTFE wires, oil resistant, 200C rated)
CAUTION: This modification require soldering experience and steady hand due to very tight location of soldering
